xTool | P2S Grey

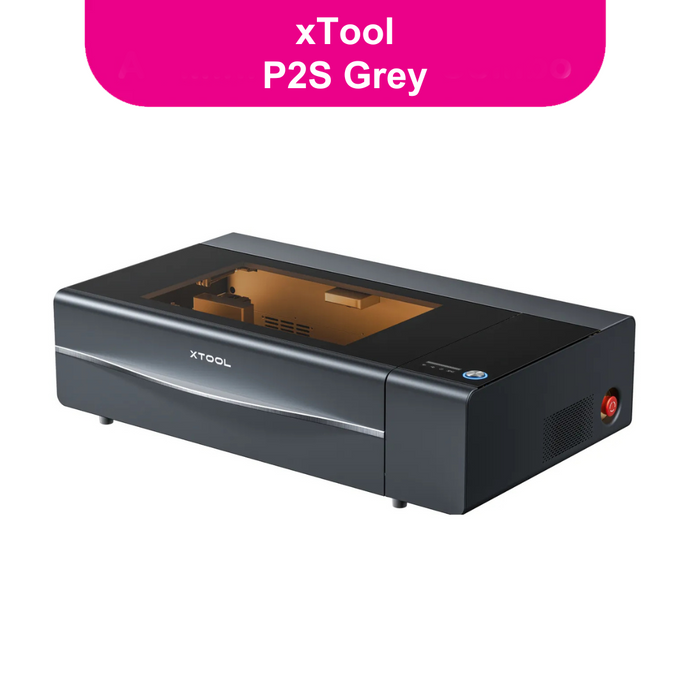

xTool P2S 55W Desktop CO2 Laser Cutter

• 16MP Dual HD Camera: Sharper preview and finer precision for smaller materials.
• AutoPassthrough™: Automatically processes materials up to 118'' long.
• 3D Curve™ Engraving: Seamlessly engrave on curved surfaces.
• 23.6" × 12" Bed Size: Larger than other desktop CO2 lasers for maximum efficiency.
• 55W Power: 5x speed when cutting 20mm acrylic & 18mm wood in one pass.

What's included?

P2S Standalone

1*xTool P2S

P2S Versatile Bundle
1*xTool P2S
1*RA2 Pro Rotary
1*Auto Conveyor Feeder
1*Riser Base

P2S All in one Bundle
1*xTool P2S
1*RA2 Pro Rotary
1*Auto Conveyor Feeder
1*Riser Base
1*SafetyPro AP2 Air Purifier



In the Box

xTool P2, Always Leads the Way.

Features That

Makes P2S/P2 Stand Out

Game-Changing Ultimate Efficiency

As a daily tool, product performance becomes particularly important. The xTool P2S boasts a leading 55W output and a large work area, perfect for handling diverse projects with ease.

Max

600mm/s

engraving speed

Up to

26 x 14 inches

bed size

Up to

500% faster

cutting on materials*

*According to xTool lab test data, the

 xTool P2S cuts 500% faster than other

40w diode laser machines.

Up to

37% output

for enhanced performance*

*Compared to the Laser Box, the xTool P2S has a 37% increase in output.



Cut Through ThickMaterials Like Butter

The CO2 laser's higher power and superior absorption rate enable it to effortlessly cut through thick materials like 20mm acrylic and 18mm black walnut,along with 100+ other materials in a single pass, achieving the best cutting results.



16MP Dual HD Camera:

Instant Preview, Flawless Positioning

With xTool P2S’s 16MP dual cameras, enjoy distortion-free full-area previews from the panoramic camera and precise, high-definition detail from the close-range camera, enabling quick, precise positioning, reducing your valuable time and material waste.

Fast Batch Fill

The camera auto-scans all materials in 3s, allowing you to drag designs onto any material, and click Batch Fill for instant batch positioning, boosting small businesses' productivity.

Master Complex Shapes

Even complex shapes are clearly visible and easily positioned. So your scrap pieces are reused, maximizing material use.

Tiny Craft, Perfect Fit

Even complex shapes are clearly visible and easily positioned. So your scrap pieces are reused, maximizing material use.

AutoPassthrough™ Technology

Process Materials Up to 118 Inches Automatically.

Our AutoPassthrough™ Technology allows for seamless, precision engraving and cutting on materials up to 118 inches long.

3D Curve Engraving

Engrave with Ease for Flawless Results on Curved Surfaces

xTool P2S's 3D Curve™ Engraving feature automatically creates perfect 3D models, expanding your creative possibilities with a variety of curved materials.

LiDAR Ranging System

Autofocus with 0.001'' Precision for Perfect Cuts Every Time

Our integrated laser sensing technology (utilizes LiDAR and dGPU) achieves 100% autofocus and maintains distance measurement precision within 0.001'', ensuring cut-through every time.



Specifications

xTool P2S

Processing Capacity

Laser Type

55W CO2 Laser

Processing Mode

Laser Cutting

Laser Engraving

Supported Materials

Laser Cuttable: Wood, Acrylic, Fabric, Leather

Laser Engravable: Metal, Glass, Bamboo, Ceramic View 300+ Compatible Materials

Working Area

23.6" × 12" (600 mm × 305 mm)

Max. Working Speed

23.6 ips (600 mm/s), X-axis Acceleration 6400 mm/s²

Max. Laser Cutting Capacity (Basswood)

0.71" (18 mm) in ONE PASS

Max. Laser Cutting Capacity (Acrylic)

0.79" (20 mm) in ONE PASS

Max. Processing Height

With riser base: 8.46" (215 mm)

With tray: 2.52" (64 mm)

Without tray: 2.80" (71 mm)

Max. Rotary Engraving Diameter

With riser base: 0 - 7.09" (0 - 180 mm)

Without riser base: 0.12 - 1.97" (3 - 50 mm)



Smart Software

Supported Software

xTool Studio

Operating System

Windows / macOS

Connection Method

USB/Wi-Fi

Supported Files

SVG/DXF/JPG/JPEG/PNG/BMP/TIF

AImake Compatibility

Yes



Easy Operation

Pre-assembled

Yes

Built-in Camera

16 MP Close-range Camera + 16 MP Panoramic Camera

Positioning Method

Dual-Camera Positioning

Focus Mode

Autofocus

Ranging System

LiDAR Ranging System

Preview Method

Smart Camera Preview



Accuracy & Precision

Laser Spot Size

0.0059" × 0.0079" (0.15 mm × 0.2 mm)

Positioning Precision

0.3 mm, Camera

Ranging Precision

0.3 mm, Camera

Image Resolution

1000 DPI

Motion Accuracy

0.00059" (0.015 mm)



General Information

Safety Certification

Class 4 Laser Safety

Product Dimensions

39.4" × 25.1" × 10.6" (1000 mm × 639 mm × 268 mm)

Product Weight

99.21 lb (45 kg)

Max. Machine Input Power

700 W

Power Adapter Input Voltage

100 V - 120 V, AC 50/60 Hz
