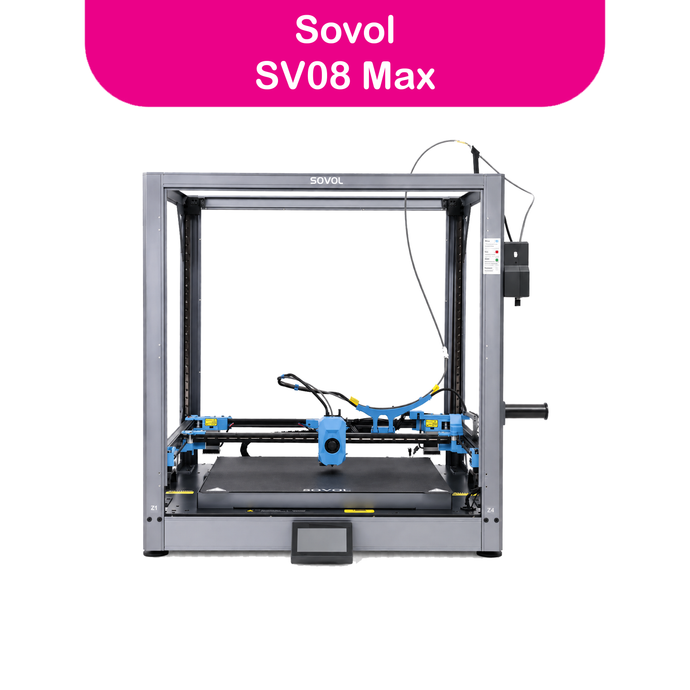

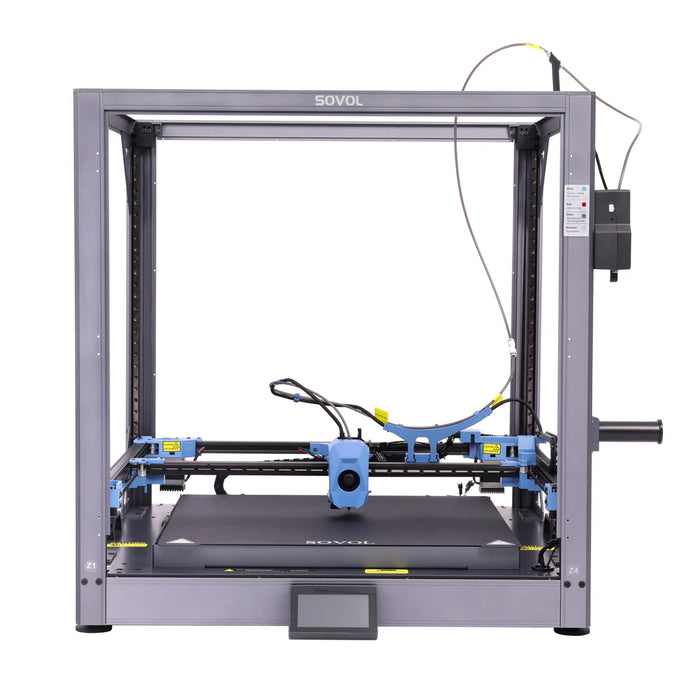

Sovol SV08 Max 3D Printer
- Up to 700mm/s
- CoreXY Kinematics
- XYZ Full Linear Rails
- Aluminum Alloy Frame
- Eddy Current Scanning
- Nozzle Temperature: ≤300℃ (572℉)
- Hot bed Temperature: ≤100℃ (212℉)
- Optional chamber heating module.
- Build Volume: 500×500×500 mm³ (500*500*450 mm³ with enclosure kit)
Product specification
Build Volume(W*D*H)
500×500×500mm³
Max Printing Speed
700mm/s
Max Acceleration
40000mm/s²
Max Flow Rate
50mm³/s
Nozzle Temperature
≤300℃
Hotbed Temperature
≤100℃
RAM
1GB (512MB + 512MB)
Storage
8GB EMMC
Filament Runout Detection
Yes
Power Loss Resume Printing
Yes
Filament Tangle / Clog Detection
Yes
Auxiliary Feeding
Yes
Slicer
Orcaslicer
Heating Method
Ceramic Heating
Nozzle
Standard: 2 × 0.4mm
Optional: 0.4 / 0.6 / 0.8mm
Control System
Klipper
Motors
Z-axis: TMC2209×4
A-axis: TMC5160×1
B-axis: TMC5160×1
Communication:
CAN bus
Connections:

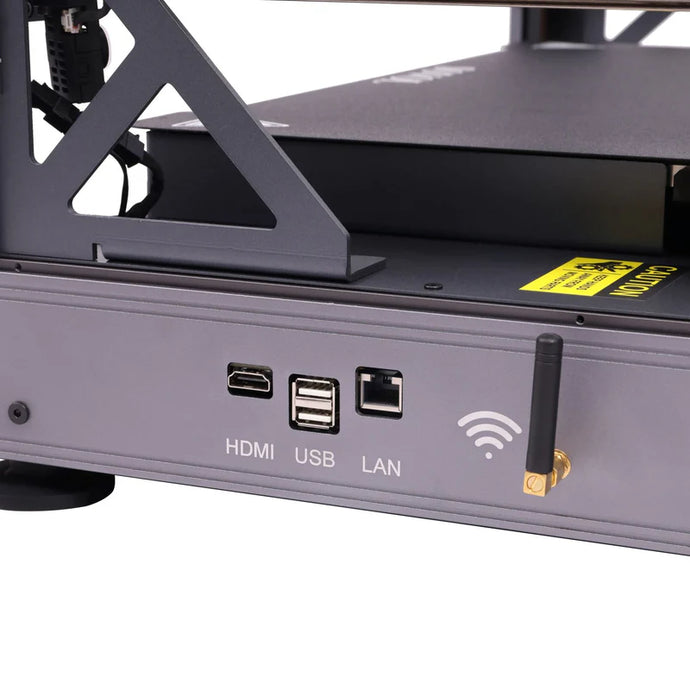

USB, Wi-Fi (2.4G/5G), HDMI, Ethernet
Filament Diameter
1.75mm
Printer Size
700×710×750mm(excluding spool holder)
Printer Package
810×820×360mm
Enclosure Kit Package
775×728×155mm
