Available in F1 Ultra Standalone, F1 Ultra + Conveyor, and F1 Ultra Deluxe Bundle
- 20W Fiber Laser + 20W Blue Diode Laser
- True Fiber Laser Technology
- Deep Engraving, Embossing, and Thin Metal Cutting
- Up to 10,000 mm/s Engraving Speed
- Cuts Brass up to 0.4 mm
- Cuts Stainless Steel up to 0.3 mm
- Cuts Aluminum up to 0.2 mm
- Cuts Basswood up to 15 mm
- Cuts Acrylic up to 12 mm
- 220 × 220 mm Working Area
- Up to 220 × 500 mm Working Area with Conveyor
- Color Engraving on Metal
- Auto Streamline™ Batch Production
- Built-in 16MP Smart Camera
- Autofocus and Manual Focus
- Camera Positioning
- Enclosed Safety Design
- Fire Safety Stop
- xTool Studio Software
- Windows / macOS Compatible
- Pre-Assembled
Product Overview

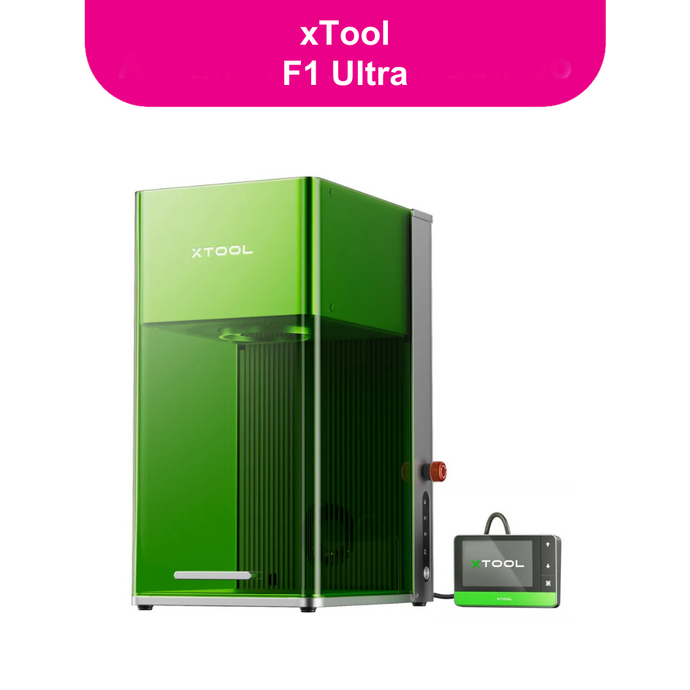

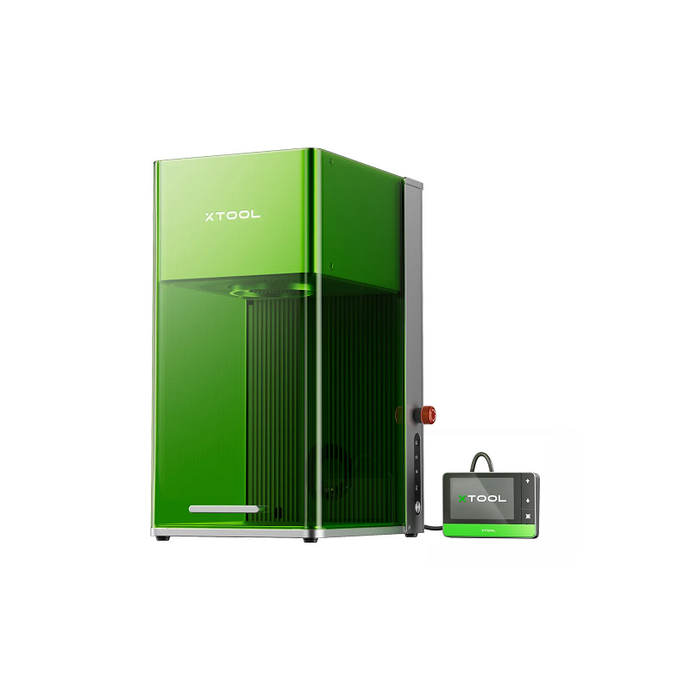

The xTool F1 Ultra is a professional dual-laser engraving and cutting machine equipped with a 20W fiber laser and 20W blue diode laser. It is designed for high-speed, precise processing of a wide range of materials, making it suitable for both personalized products and high-volume production.
The 20W diode laser is ideal for materials such as wood, acrylic, leather, paper, glass, ceramic, and more, while the 20W fiber laser is designed for engraving metals and plastics. The F1 Ultra can perform deep engraving, embossing, color engraving, and thin metal cutting.
With engraving speeds of up to 10,000 mm/s, a built-in 16MP smart camera, autofocus, and optional conveyor support, the F1 Ultra provides an efficient workflow for both detailed projects and batch production.
Dual-Laser System
20W Diode Laser
The 20W blue diode laser is suitable for cutting and engraving materials including:
- Paper
- Wood
- Leather
- MDF
- Felt
- Some dark opaque acrylic
- Bamboo
- Fabric
- Dark glass
- Ceramic
- Jade
- Marble
- Shale
- Cement
- Brick
- Plated metal
- Painted metal
20W Fiber Laser
The 20W fiber laser is designed for engraving materials including:
- Stainless Steel
- Aluminum
- Brass
- Silver
- Plastic
- Platinum
- Titanium
- Gold
The fiber laser can also cut thin metal sheets up to 0.4 mm brass, 0.3 mm stainless steel, and 0.2 mm aluminum.
Cutting & Engraving Capabilities
The F1 Ultra can cut basswood up to 15 mm and acrylic up to 12 mm using multiple passes. Its fiber laser enables deep metal engraving, embossing, color engraving, and thin metal cutting.
Both laser systems can also be used for color engraving on compatible metal surfaces.
Auto Streamline™ Production
When paired with the optional xTool Conveyor, the F1 Ultra can streamline batch production. Its built-in camera can identify material shapes and help position designs accurately for repeated engraving jobs.
Specifications – xTool F1 Ultra
| SpecificationDetails |
|
| Laser Type |
20W Diode Laser + 20W Fiber Laser |
| Processing Mode |
Laser Engraving / Laser Cutting |
| Working Area |
220 × 220 mm (8.6" × 8.6") |
| Working Area with Conveyor |
220 × 500 mm (8.6" × 19.6") |
| Maximum Working Speed |
10,000 mm/s |
| Max. Basswood Cutting Capacity |
15 mm, multiple passes |
| Max. Acrylic Cutting Capacity |
12 mm, multiple passes |
| Thin Metal Cutting – Brass |
Up to 0.4 mm |
| Thin Metal Cutting – Stainless Steel |
Up to 0.3 mm |
| Thin Metal Cutting – Aluminum |
Up to 0.2 mm |
| Maximum Processing Height |
145 mm |
| Maximum Rotary Engraving Diameter |
145 mm |
| Diode Laser Spot Size |
0.08 × 0.10 mm |
| Fiber Laser Spot Size |
0.03 × 0.03 mm |
| Ranging Precision |
0.5 mm, camera |
| Motion Accuracy |
0.00482 mm |
| Built-in Camera |
16MP Smart Camera |
| Positioning Method |
Camera Positioning |
| Focus Mode |
Autofocus / Manual Focus |
| Preview Method |
Smart Camera Preview / High-Speed Light Live Preview |
| Software |
xTool Studio |
| Operating System |
Windows / macOS |
| Supported File Formats |
SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| AImake Compatibility |
Yes |
| Pre-Assembled |
Yes |
| Product Dimensions |
273 × 373 × 492 mm (10.75" × 14.69" × 19.37") |
| Machine Weight |
14.7 kg / 32.4 lbs |
| Maximum Machine Input Power |
250–275 W |
| Power Adapter Input |
100–240V AC, 50/60 Hz |
| Safety Certification |
Class 4 Laser Safety |
Software & Smart Features
The xTool F1 Ultra works with xTool Studio, providing tools for design creation, machine control, positioning, and production management.
Smart Features
- 16MP Smart Camera
- Camera-based material positioning
- Autofocus
- Manual focus
- Smart Camera Preview
- High-Speed Light Live Preview
- AI-powered design capabilities
- Auto Streamline™ production with conveyor
- Batch processing support
F1 Ultra Standalone – Inclusions

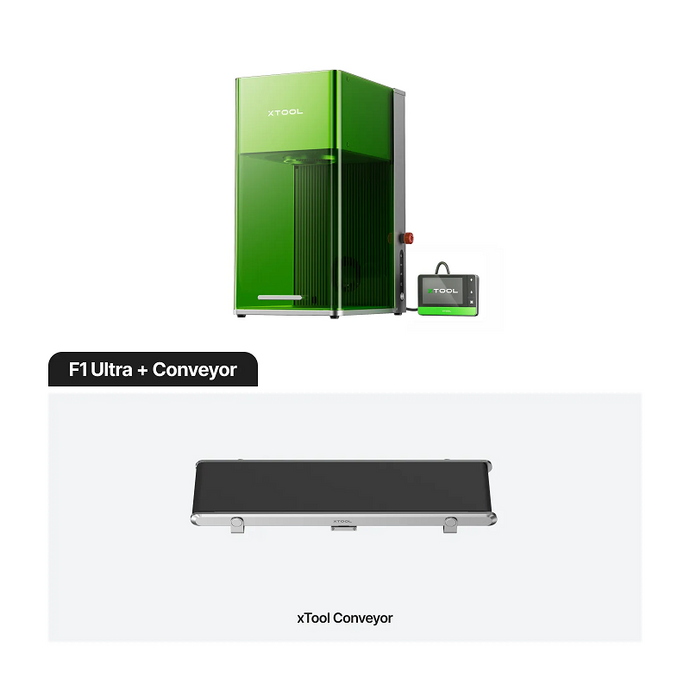

F1 Ultra + Conveyor – Inclusions
- 1 × xTool F1 Ultra
- 1 × xTool Conveyor

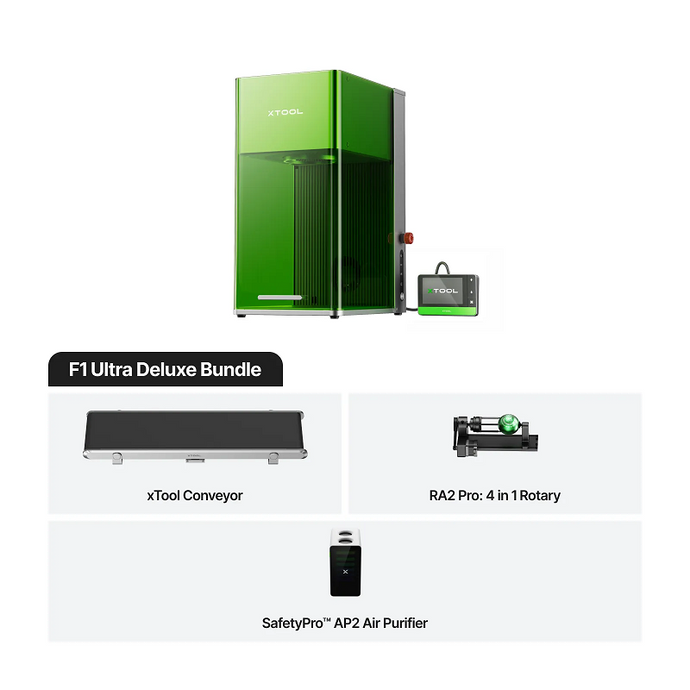

F1 Ultra Deluxe Bundle – Inclusions
- 1 × xTool F1 Ultra
- 1 × xTool Conveyor
- 1 × xTool RA2 Pro 4-in-1 Rotary
- 1 × SafetyPro AP2 Air Purifier
Warranty
24 MONTHS WARRANTY – MAIN COMPONENTS
NO WARRANTY – ACCESSORIES
Terms and conditions apply.
ETA
MONTH OF NOVEMBER
PRE-ORDER F1 Ultra + Conveyor
PRE-ORDER F1 Ultra Deluxe Bundle
