xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver

• Vibrant Color Marking: 60W MOPA unlocks 100+ consistent colors on metals.
• 48MP Dual Cameras: Precise alignment and fine detail, even on tiny items.
• All-Metal Capability: Color engraving, emboss, and cut brass, stainless steel, and more.
• Efficient Batch Engraving: 8.6"×8.6" area & 15,000mm/s speed for pro-level output.
• Safety-Assured: Enclosed cover. Eye-protection cover. Fire safety stop.


WHAT'S INCLUDED?

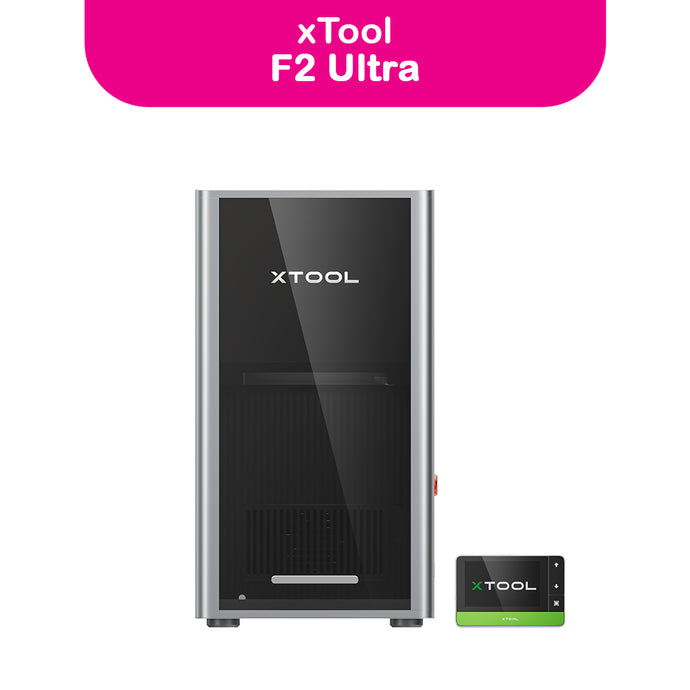

F2 ULTRA Standalone

• 1 F2 Ultra Standalone unit

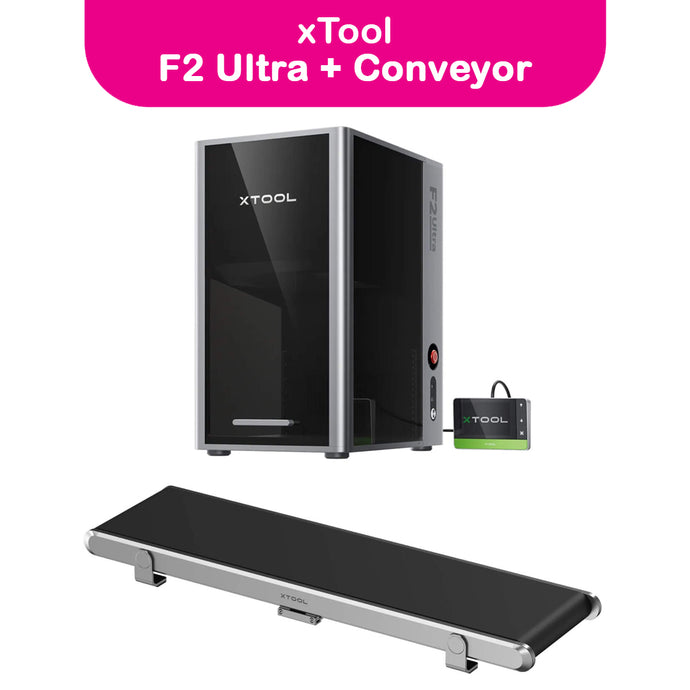

F2 ULTRA + Conveyor

• 1 F2 Ultra unit
• 1 Autostreamline Conveyor

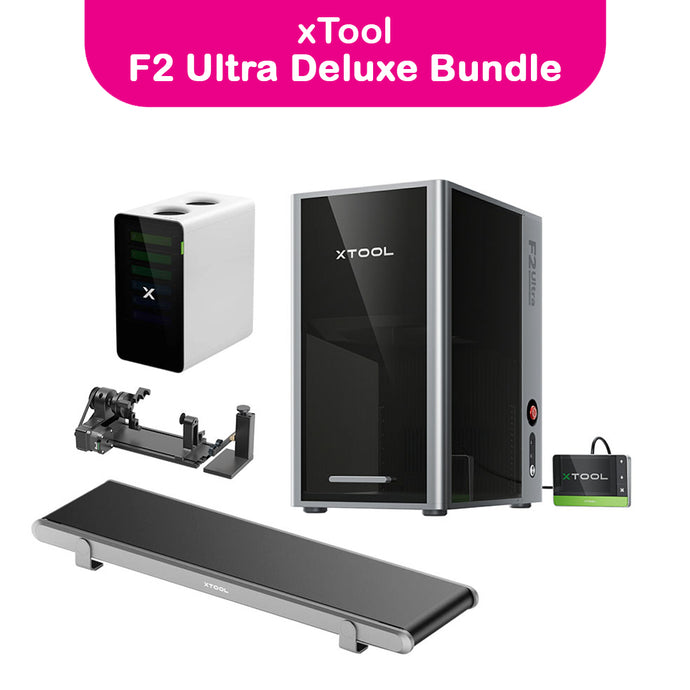

F2 Ultra Deluxe Bundle

• 1 F2 Ultra unit
• 1 Autostreamline Conveyor
• 1 RA2 Pro Kit
• 1 SafetyPro AP2 Air Purifier

In the Box

Features

Why MOPA Is the Professional Choice in Metal Work

Powered by MOPA, xTool F2 Ultra delivers a more versatile metal processing experience beyond ordinary fiber lasers.

Color Engraving

With its wider pulse and frequency range, MOPA makes it easy to engrave hundreds of vibrant colors on metal, boosting your product value.



True Black Marking

MOPA can precisely control pulse width and frequency to engrave deep black marks in fewer passes—no marking spray needed like fiber.



Faster 3D Engraving

60W MOPA engraves 3D metal coins 5× faster than 20W fiber, helping you finish orders quickly and achieve faster payback.



Metal Cutting

With higher power, you can cut thicker metal and turn it into premium products for new markets—a 1mm name necklace takes just 6 minutes.



Specifications

Processing Capacity

Laser Type

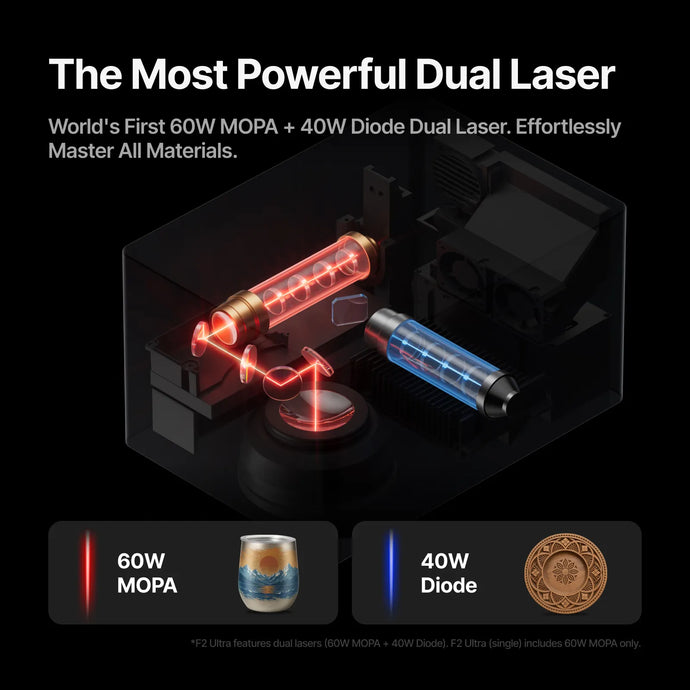

F2 Ultra: 40W Diode + 60W MOPA Laser

F2 Ultra(single): 60W MOPA Laser

Processing Mode

Laser Engraving

Laser Cutting

Supported Materials

Laser Cuttable:

Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic

Mopa Laser: Brass, Stainless Steel, Aluminum

Laser Engravable:

Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal

Mopa Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold

Laser Cuttable:

Working Area

8.6" × 8.6" (220 mm × 220 mm)

8.6" × 19.6" (with conveyor) (220 mm × 500 mm)

Max. Working Speed

590.55 ips (15,000 mm/s)

Max. Laser Cutting Capacity (Basswood)

0.91" (23mm) in Multiple Passes

Max. Laser Cutting Capacity (Acrylic)

0.79" (20mm) in Multiple Passes

Max. Processing Height

150mm

145 mm

Max. Rotary Engraving Diameter

150mm

145 mm

Supported Software

xTool Studio

Operating System

Windows/macOS

Connection Method

USB/Wi-Fi/IP

Supported Files

SVG/DXF/JPG/JPEG/PNG/BMP/TIF

AImake Compatibility

Yes

Pre-assembled

Yes

Built-in Camera

48 MP Dual Cameras

Positioning Method

Camera Positioning

Focus Mode

Autofocus

Ranging System

N/A

Preview Method

Smart Camera Preview

Laser Spot Size

0.08*0.1mm (40W Diode Laser)

0.03*0.03mm (60W MOPA Laser)

Positioning Precision

0.2 mm

Ranging Precision

0.2 mm, Camera

Image Resolution

N/A

Motion Accuracy

0.00482 mm



General Information

Safety Certification

Class 4 Laser Safety

Product Size

11.57'' × 16.88'' × 20.51'' (294 mm x 429 mm x 521 mm)

Product Weight

F2 Ultra: 47lb (21.6kg)

Max. Machine Input Power

400W

Power Adapter Input Voltage

100 V - 240 V, AC 50/60 Hz
