PRE ORDER Flashforge AD5X

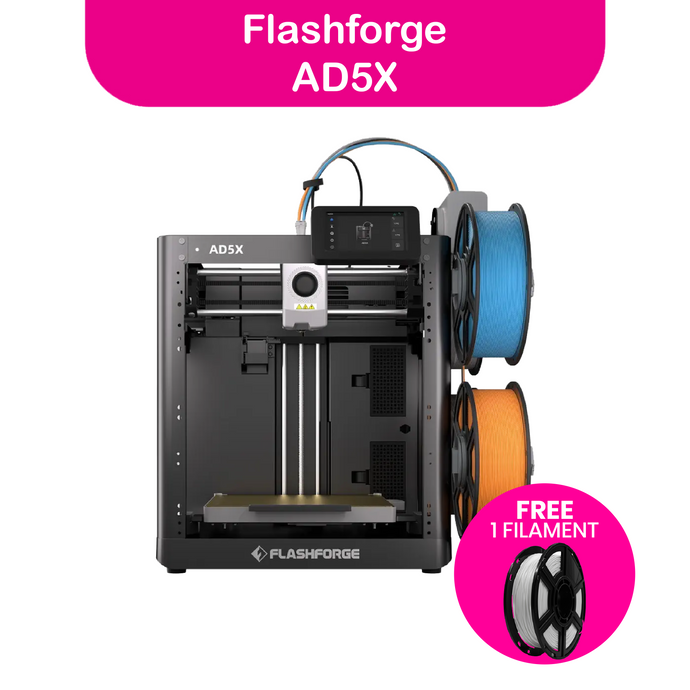

Flashforge AD5X – Multicolor 3D Printer for High-Speed, Full-Color Printing

The Flashforge AD5X is a high-speed CoreXY multicolor 3D printer designed for 4-color printing with an integrated Intelligent Filament System (IFS). It features a 220 × 220 × 220 mm working/build area, up to 300 mm/s print speed, 600 mm/s maximum travel speed, and 20,000 mm/s² maximum acceleration. It also features one-click automatic leveling, automatic filament loading and switching, power outage recovery, and a flexible PEI steel build plate.

Key Features

• Smart Multi-Color Printing: Print in 4 colors for vibrant, detailed models.

• 10 Minutes or Less: Quick setup, no prior experience required.

• 600mm/s Max Speed: Achieve faster print times with high-speed capabilities.

• 20000mm/s² Max Acceleration: Ensures quick, precise movements for enhanced performance.

• 99% Resume Print Success: Reliable print recovery for minimal disruptions.

• Integrated Intelligent Filament System (IFS)

• CoreXY Structure

• One-Click Auto Leveling

• Fully Auto Filament Loading and Switching

• Power Outage Recovery

• PEI Flexible Steel Sheet

• 4.3-inch Color Touchscreen

Machine Specifications

The official Flashforge specifications list 11.4 kg net weight, 14.2 kg gross weight, and the dimensions above.

Printing System

Multi-Color Printing

• 4-color printing

• Integrated Intelligent Filament System (IFS)

• Automatic filament loading and unloading

• Automatic filament switching

• 4 filament channels

• Multi-color printing

The AD5X uses a single extruder with an integrated IFS system, rather than four independent toolheads.

Motion System

• CoreXY Structure

• Maximum Print Speed: 300 mm/s

• Maximum Travel Speed: 600 mm/s

• Maximum Acceleration: 20,000 mm/s²

Build Plate & Heated Bed

• Build Plate: PEI Flexible Steel Sheet

• Maximum Bed Temperature: 110°C

• Layer Thickness: 0.1–0.4 mm

• Replaceable Print Bed

Automatic Leveling

• Full-Auto One-Click Leveling

• Pressure sensing technology

• Automatic compensation

• Designed to ensure first-layer quality

Filament Detection & Recovery

• Filament Running Out Reminder

• Power Outage Recovery

• 99% Resume Print Success Rate

Supported Filaments

• PETG

• PLA

• TPU95A

• TPU64D–75D

• PLA-CF

• PETG-CF

TPU95A is recommended for single-color printing.

Nozzle

• Default Nozzle Diameter: 0.4 mm

• Optional Nozzle Diameters: 0.25 / 0.6 / 0.8 mm

• Maximum Extruder Temperature: 300°C

• Quick-Swap Nozzle

Display

• 4.3-inch Color Touchscreen

Connectivity

• USB

• Wi-Fi

• Ethernet

• 2.4 GHz / 5 GHz Wi-Fi

Software

• Orca-Flashforge

• Orca Slicer

Additional Features

• Multi-Device Management

• Chamber Lighting: Expandable

• Remote Monitoring: Expandable

• Auto 4kg Filament Refill

• One-Click Auto Leveling

• Power Outage Recovery

• CoreXY Structure

Package & Weight

• Machine Dimensions: 363 × 402 × 448 mm including display screen and spool holder

• Machine Weight: 11.4 kg

• Gross Weight: 14.2 kg

• Package Dimensions: 440 × 440 × 515 mm
