xTool | RA3

xTool RA3: The Intelligent Rotary that Masters Engraving on Rings, Tumblers & Ornaments

• Smarter Workflow Boosts Efficiency: Automatic mode recognition, an accurate 3D preview, & auto-focus with the P3's 360° LiDAR Mapping.
• Effortless Setup: The MagSwap™ design lets you quickly and easily assemble the rotary and switch between roller, chuck, sphere, and ring modes.

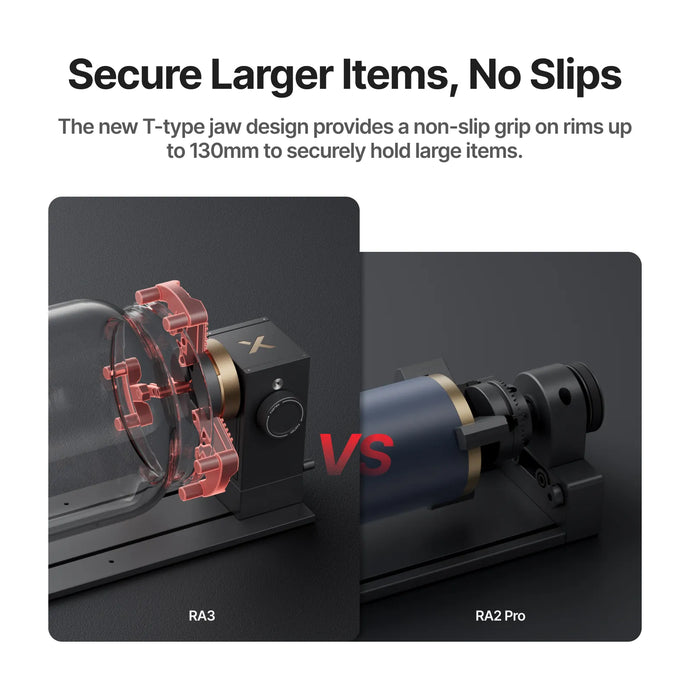

• New Functions: Roller & jaw batch processing, a one-step inner ring angle adjustment, and an enlarged 130mm chuck to engrave bigger items.

note:

RA3’s full smart automated rotary functions require a P Series machine, and due to galvo laser hardware characteristics, F Series do not support these functions.

Make Any Round Surface Your Canvas

Your canvas now includes cylinders, spheres, and rings. Plus, unlock exclusive techniques, like full-wrap engraving on revolving vases, and accelerated batch production.

Full-Wrap on Revolving Vases

Ring Rotary

For Regular Cylinders & Batch Processing

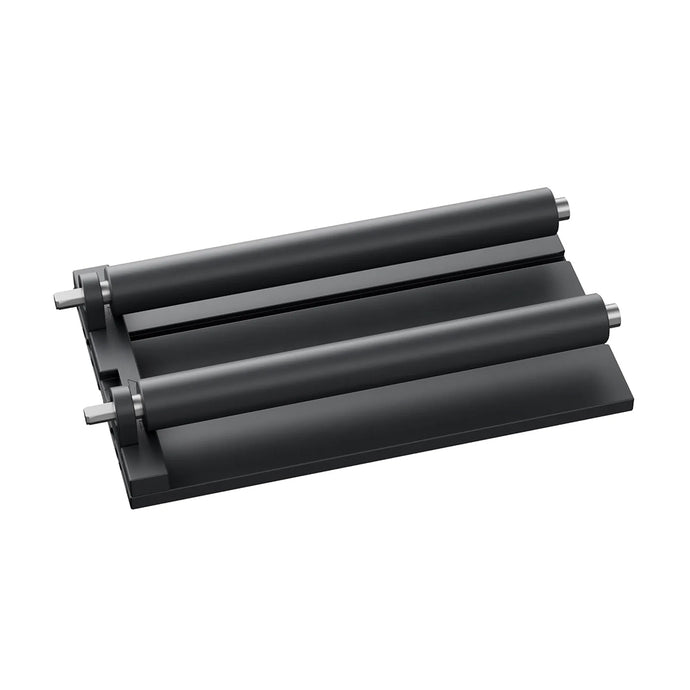

Roller Rotary

For Complex & Irregular Shapes

Chuck Rotary

For Spheres

Sphere Rotary

For Rings

Ring Rotary

Specifications

xTool RA3

Smart Features

360° LiDAR Mapping™ for 3D Modeling Preview

√

(P Series Only)

Rotary Mode Auto Recognition

√

(P Series Only)

MagSwap™ Design

√

Supported Modes & Applications

Chuck Rotary

√

Roller Rotary

√

Sphere Rotary

√

Ring Rotary

√

Inner Ring Engraving

√

Batch Processing

√ (Extra Purchase)

Full-Wrap Engraving on Vase

√

Specifications

Engrave Diameter Range (Chuck)

0 - 130 mm

Engrave Diameter Range (Roller)

3 - 198 mm

Engrave Diameter Range (Sphere)

25 - 100 mm

Engrave Diameter Range (Ring)

11 - 70 mm

Product Size

324 * 187 * 148 mm

Product Weight

2.26 kg

Compatibility

P Series, F2, F1 Ultra, F2 Ultra (both versions), F2 Ultra UV
