PRE ORDER xTool F2 & F2 Deluxe Bundle

xTool F2 5W IR and 15W Diode Portable Dual Laser Engraver

• 15W Diode & 5W IR Dual Power: Unlocks more in a portable—color engraving, 3D relief, and deep black-on-metal.
• 50MP Camera: Full workspace live preview with up to 0.1 mm alignment accuracy on small pieces.

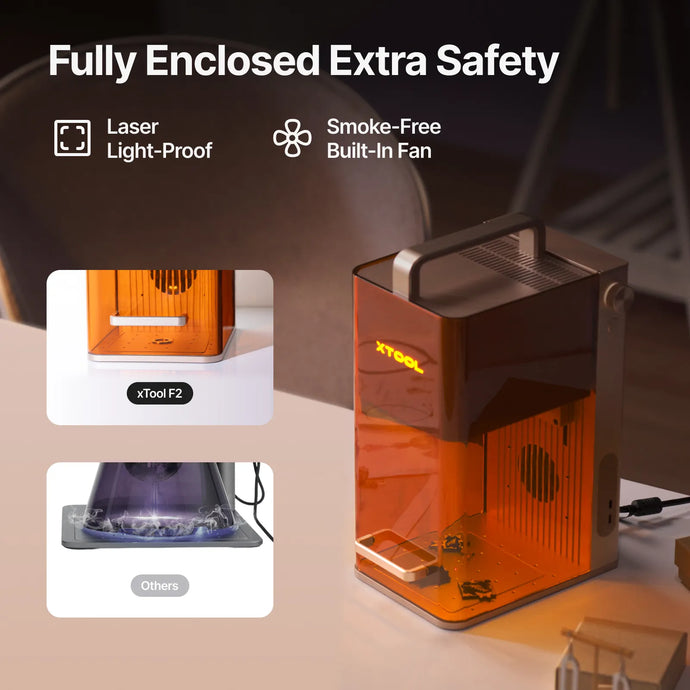

• Portable & Safe: Compact design with eye-protection cover—ready for on-site personalization and small-batch runs.
• Fast & Precise: Up to 6,000 mm/s marking for crisp detail and shorter cycle times.
• User-Friendly: Pre-assembled, intuitive operation, with live position preview.

WHAT'S INCLUDED?

xTool F2 Standalone

• 1 xTool F2

xTool F2 Deluxe Bundle

• 1 xTool F2 Standalone
• 1 xTool Slide Extension
• 1 xTool RA3: 4 in 1 Rotary
• 1 xTool Desktop Air Purifier

In the Box





Customization. As Easy As 1-2-3.

Three steps in minutes: place your material, preview with the 50MP camera, press start to engrave fast.

1. Place Material

Place your material—auto-focus sets height and applies recommended settings.

2. Camera Preview

Create your pattern. 50MP live preview puts your design dead-center and true to your vision.

3. Done

Press start and get impressive results fast with high-speed engraving.



Processing Capacity

Laser Type

15W Diode Laser + 5W 1064nm Infrared Laser

Processing Mode

Laser Engraving
Laser Cutting

Supported Materials

Laser Cuttable:
15W Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic.

Laser Engravable:
15W Diode Laser: Paper, Wood, Leather, Coated Metal, Some Dark Opaque Acrylic, etc.
5W Infrared Laser: Plastic, Gold, Silver, Platinum, Stainless Steel, etc.

Working Area

4.53" × 4.53"(115mm × 115mm)
15.75" × 4.53"(400mm × 115mm) with Extension

Max. Working Speed

236.22 ips (6000mm/s)

Max. Laser Cutting Capacity (Basswood)

0.59" (15mm) in Multiple Pass

Max. Laser Cutting Capacity (Acrylic)

0.47" (12mm) in Multiple Pass

Max. Processing Height

4.72" (120mm)

Max. Rotary Engraving Diameter

4.72" (120mm)



Smart Software

Supported Software

xTool Studio

Operating System

Windows / macOS

Connection Method

Wi-Fi / USB / IP

Supported Files

SVG/DXF/JPG/JPEG/PNG/BMP, etc.

Almake Compatibility

Yes

Easy Operation

Pre-assembled

Yes

Built-in Camera

50 MP Smart Camera

Positioning Method

Framing Positioning
Camera Positioning

Focus Mode

Auto Focus
Manual Focus (Two dots alignment)

Framing Mode

Rectangle Framing
Outline Framing
Polygon Framing

Preview Method

Smart Camera Preview
High-speed Light Live Preview



Accuracy & Precision

Laser Spot Size

15W Diode Laser: 0.00315" x 0.00236"
(0.08mm x0.06mm)
5W Infrared Laser: 0.00118" x 0.00118"
(0.03mm x0.03mm)

Motion Accuracy

0.000078" (0.00199 mm)

General Information

Max. Machine Input Power

25V 6.0A 150W

Product Weight

10.14lb (4.60kg)

Product Dimensions

6.89" × 9.33" × 13.15"(175mm*237mm*334mm)

Safety Certification

Class 4 Laser Safety

Power Adapter Input Voltage

100 V - 120 V, AC 50/60 Hz
