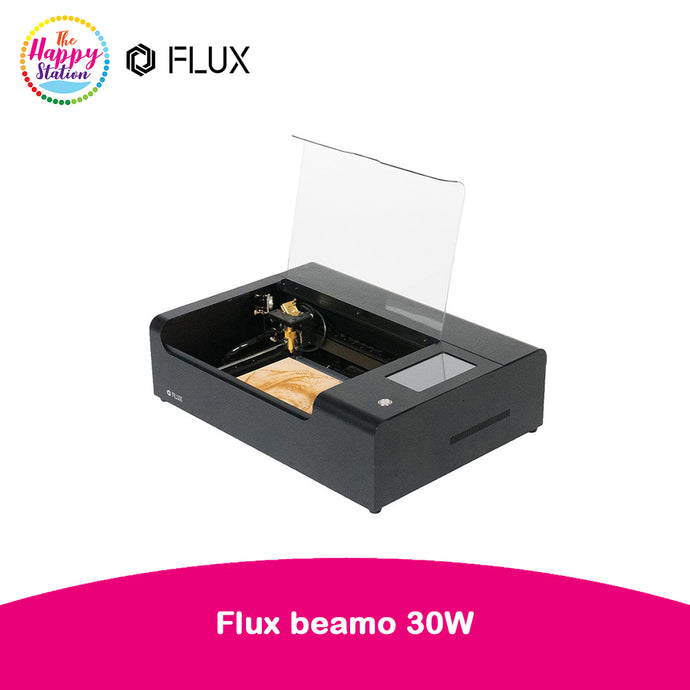

FLUX | beamo 30W CO2 Desktop Laser Cutter & Engraver Machine

CUTTING AND ENGRAVING COMPARISON CHART:

	Materials	1st Cutting	Engraving
	Wood	3mm
	Acrylic	3mm
	Leather	1mm
	Cardboard	2mm
	Fabric	9mm
	Rubber
	Anode Metal
	Glass
	Cement
	Stone
	Stainless Steel *		(with spray or diode add-on)

Features:

Camera alignment:  Utilizing the built-in HD camera, users can preview the work area and the material being used from the convenience of their laptop or cellphone. Placing designs, and ensuring the finished product is placed exactly as intended has never been simpler.

Internal Water-cooling: The built-in closed-loop water cooling system, which is designed to circulate water throughout the machine, ensures that all components of beamo remain at the optimal operating temperature when in use.

High-Resolution Laser: beamo uses a laser that is smaller than the width of a human hair and is capable of engraving at a layer depth of 0.05mm. The 1,000 DPI resolution won’t disappoint!

Add on-features:

AutoFocus: This add-on allows the focus to be adjusted according to the thickness of the material, this enables beamo to cut deeper into materials over multiple passes.

Rotary: The Rotary add-on allows users to unlock the full engraving potential of beamo by enabling engraving on curved objects such as glassware and bottles. The rotary module spins the workpiece. This easy to install add-on opens up whole new creative dimensions.

Hybrid Laser: This add-on combination of a diode laser and CO2 laser improves the cutting speed and efficiency of beamo.

TECHNICAL SPECIFICATIONS:

Laser:

• Spec: 30W CO₂ Laser
• Cutting Thickness: 0-5 mm (varies by material)
• Movement Speed: 0-300 mm/s
• Maximum Material Height: 45mm

Hardware:

• Dimensions: 24.21" x 17.52" x 6.97" in (615 x 445 x 177 mm)
• Weight: 48.5 lbs (22 kg)
• Power: AC 220V
• Touch Panel: 1024 x 600 LCD
• Camera: HD CMOS
• I/O: Wi-Fi / Ethernet
• Camera Preview Area: 11.81" x 7.68" (300 x 195 mm)

Standard Mode:

• Work Area: 11.81" x 8.27" (300 x 210 mm)
• Work Area Depth: 1.77" (45 mm)

Borderless Mode:

• Work Area: 10.23" x 8.27" (260 x 210 mm)

Software:

• Mode: Vector / Graphic (monochrome, gray scale)
• Operating System: Windows / macOSX / Linux / Chrome OS
• File Type: JPG / PNG / SVG / DX
