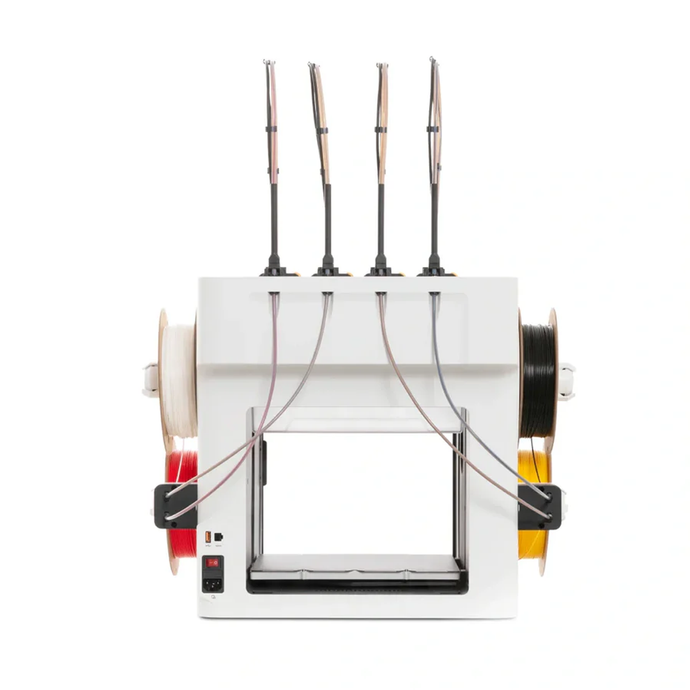

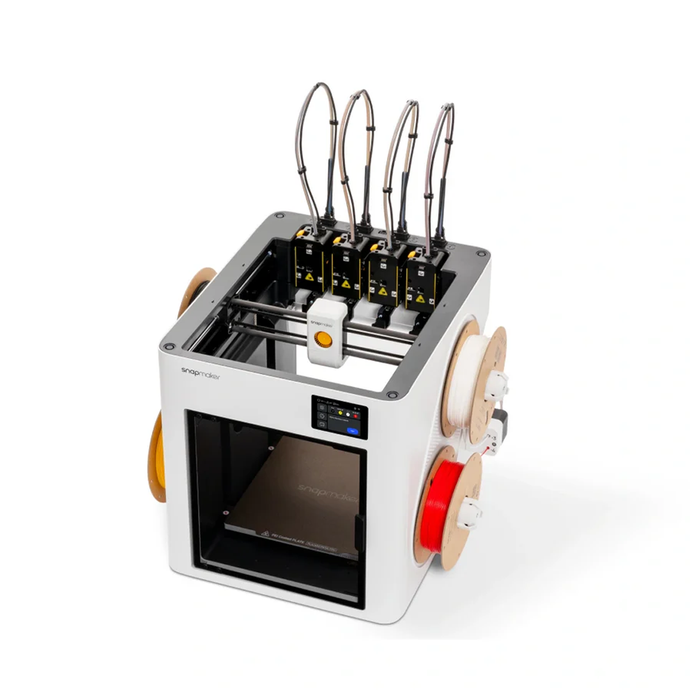

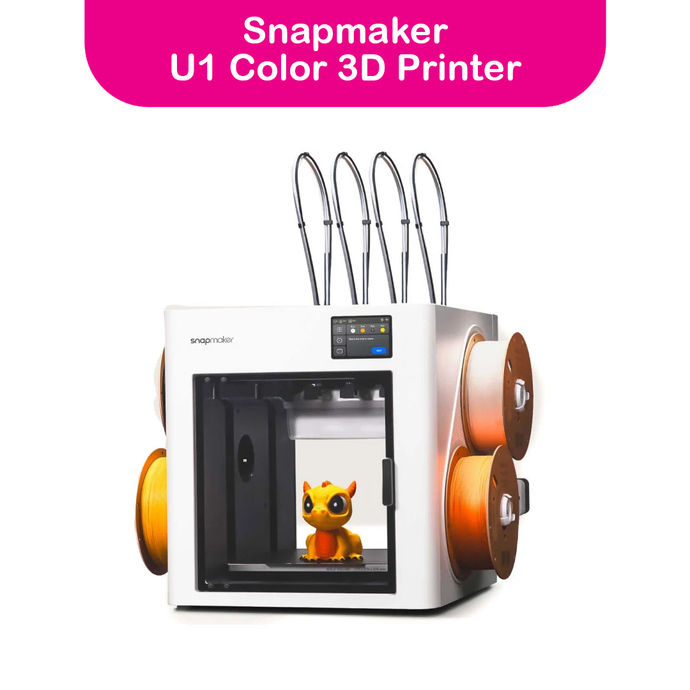

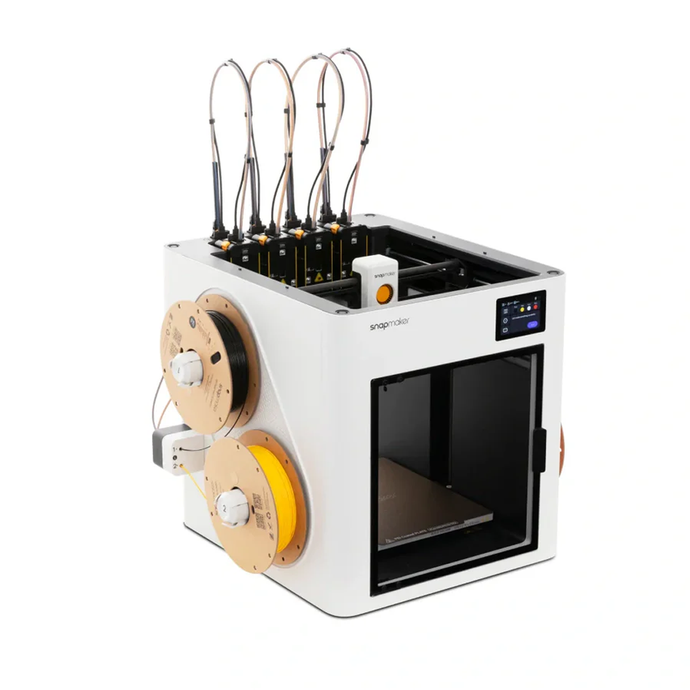

The Snapmaker U1 3D Printer is a high-speed CoreXY 3D printer designed for creators who demand speed and material versatility. Featuring the SnapSwap System with 4 individual extruders, the U1 can switch toolheads in 5 seconds for multi-color and multi-material printing. It features smart calibration, automatic filament system, AI-powered print monitoring, and a 270 × 270 × 270mm work area.
Key Features
-
SnapSwap System: With 4 toolheads preloaded and pre-heated materials, U1 cuts waiting time to 5 seconds by swapping toolheads, and eliminates remaining material squeezing out for filament changes, enabling 5X more speed and 5X less waste.
-
Multiple Colors and Materials: 4 individual extruders enable printing creations with multi-color, multi-material filaments, unleashing your creativity.
-
Smart Calibration: Dynamic flow calibration, vibration compensation, fine-tuned extrusion, and flawless first layer.
-
CoreXY System with 500mm/s Speed: Lightweight, rigid carbon fiber X-axis rails, delivering travel speeds of up to 500mm/s, and maintaining long-term precision across a 270 × 270 × 270mm work area.
-
Ease of Use: Automatic filament system, AI-powered print monitoring and smart control, such as 3.5-inch touchscreen, App remote control, and software Snapmaker Orca.
Machine Specifications
| Specification |
Details |
| Working / Build Area |
270 × 270 × 270mm |
| Build Volume |
270mm × 270mm × 270mm |
| Machine Dimensions |
584mm × 499mm × 730mm |
| Machine Weight |
18.2kg |
| Printing Technology |
Fused Deposition Modeling |
| Max Toolhead Speed |
500mm/s |
| Max Acceleration Speed |
20,000mm/s² |
| Toolheads Included |
4 |
| Max Flow for Hot End |
32mm³/s |
| Nozzle |
Stainless Steel |
| Max Nozzle Temperature |
300°C |
| Nozzle Diameter |
0.4mm |
| Filament Diameter |
1.75mm |
| Part Cooling |
Main & Auxiliary Part Cooling Fans |
| Build Plate |
Flexible Steel Sheet with PEI Surface |
| Max Heated Bed Temperature |
100°C |
| Touchscreen |
3.5-inch 320 × 480 Touchscreen |
| Data Transmission Methods |
Wi-Fi (IEEE802.11b/g/n Standards, 2.4GHz), USB Flash Drive |
| Storage |
26 GB eMMC |
| Live View Camera |
2 Megapixel Built-in Chamber Camera |
| Max Input Power |
1150 W (220-240 V~), 400 W (100-120V~) |
| Max Input Current |
6 A(220-240V~), 4 A(100-120 V~) |
Printing System
SnapSwap System
- 4 toolheads preloaded and pre-heated materials
- Toolhead swapping in 5 seconds
- Eliminates remaining material squeezing out for filament changes
- 5X more speed and 5X less waste
Toolhead
-
Toolheads Included: 4
-
Max Flow for Hot End: 32mm³/s
-
Nozzle: Stainless Steel
-
Max Nozzle Temperature: 300°C
-
Nozzle Diameter: 0.4mm
-
Filament Diameter: 1.75mm
-
Part Cooling: Main & Auxiliary Part Cooling Fans

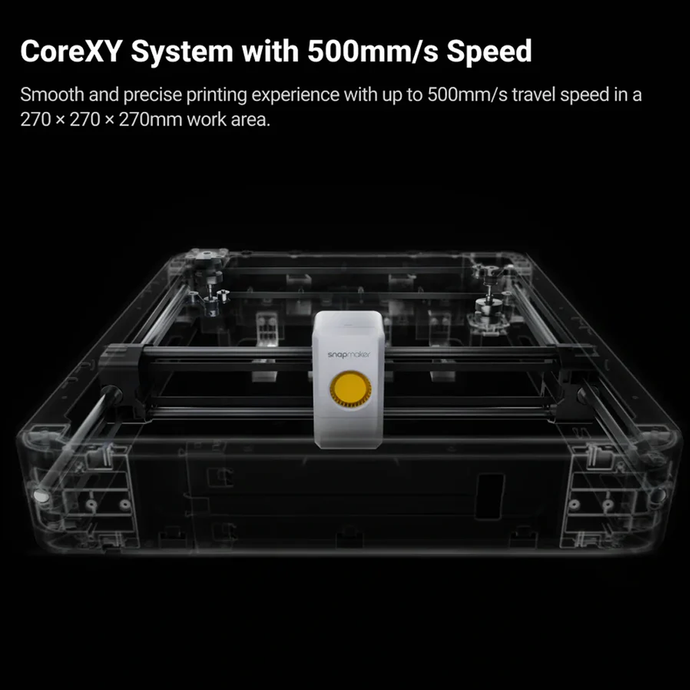

Motion System
-
CoreXY System
-
Lightweight, rigid carbon fiber X-axis rails
-
Max Toolhead Speed: 500mm/s
-
Max Acceleration Speed: 20,000mm/s²
Multi-Color and Multi-Material Printing
-
4 individual extruders
-
Multi-color filaments
-
Multi-material filaments

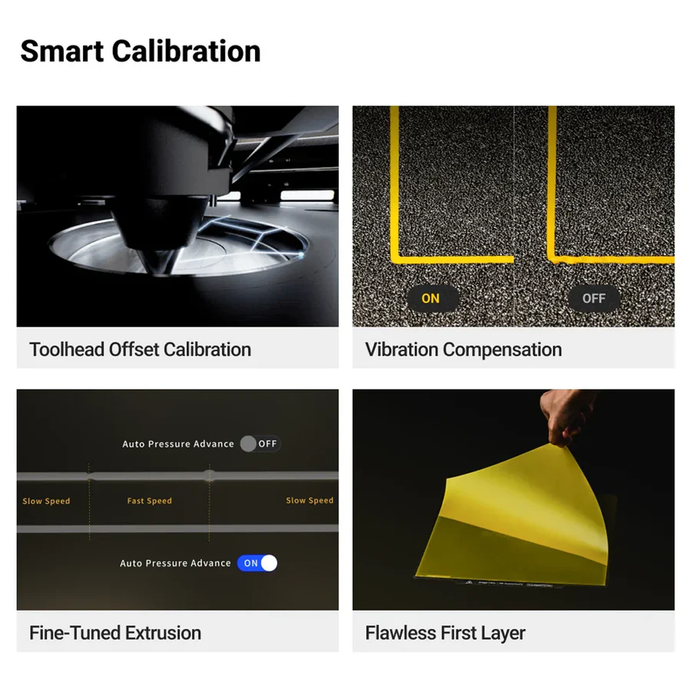

Smart Calibration
-
Dynamic flow calibration
-
Vibration compensation
-
Fine-tuned extrusion
-
Flawless first layer
Auto-Calibration
-
Heated Bed Leveling: Mesh Bed Leveling
-
Active Vibration Control: Accelerometer & Input Shaping Calibration
-
Automatic Flow Compensation: Pressure Advance Calibration
-
Automatic Toolhead Offset Calibration: Coordinate Measuring Calibration
Heated Bed
Supported Filament Type
Basic Material Compatibility
With Optional Top Cover
- PLA
- PETG
- TPU
- PVA
- PET
- ABS
- ASA
- PA
- PC
With Top Cover & Hardened Steel Nozzle
- PLA
- PETG
- TPU
- PVA
- PET
- ABS
- ASA
- PA
- PC
- Carbon-fiber-reinforced Polymer
- Glass-fiber-reinforced Polymer
Electronics
-
Touchscreen: 3.5-inch 320 × 480 Touchscreen
-
Data Transmission Methods: Wi-Fi (IEEE802.11b/g/n Standards, 2.4GHz), USB Flash Drive
-
Storage: 26 GB eMMC
-
Live View Camera: 2 Megapixel Built-in Chamber Camera
-
Max Input Power: 1150 W (220-240 V~), 400 W (100-120V~)
-
Max Input Current: 6 A(220-240 V~), 4 A(100-120 V~)
Software
-
Supported Slicer: Snapmaker Orca, Orcaslicer
-
APP: Snapmaker APP
Operating System
Software
APP
Warranty
1 year - part and service
3 months for consumables
*Terms and conditions apply.
