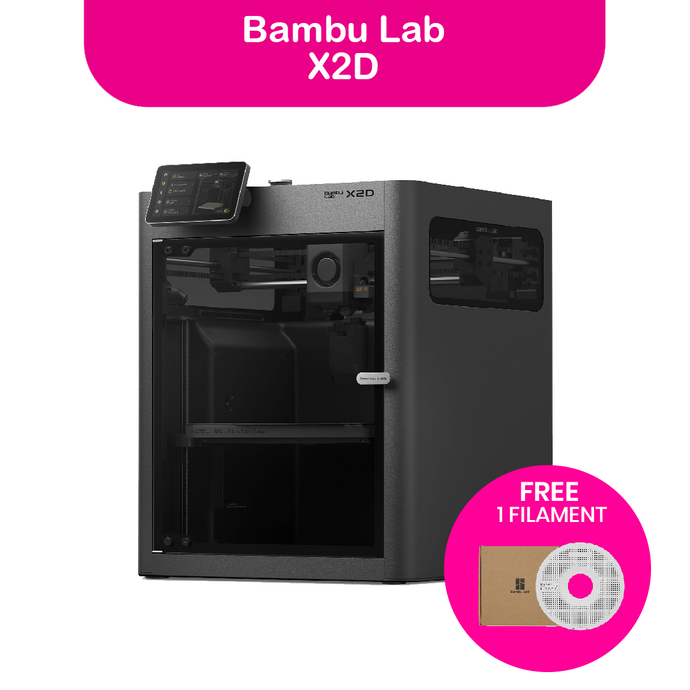

PRE ORDER - BAMBU LAB | X2D / X2D Combo Dual Nozzle 3D Printer

PRODUCT DETAILS:

The Bambu Lab X2D is a high-performance dual-nozzle FDM 3D printer designed for makers, designers, engineers, and businesses requiring efficient multi-color and multi-material printing.

Featuring a 256 × 256 × 260 mm build volume, a maximum toolhead speed of 1,000 mm/s, and acceleration of up to 20,000 mm/s², the X2D is suitable for producing detailed prototypes, customized products, functional components, and complex 3D models.

Equipped with two independent hotends, the printer enables faster material switching and cleaner support removal by using separate nozzles for different filaments. Its closed-loop servo motor extruder, hardened steel components, and maximum nozzle temperature of 300°C support a wide range of standard and engineering-grade materials.

The X2D also features active chamber heating up to 65°C, automatic leveling, full filament path AI detection, and a three-stage air filtration system. With compatibility for Bambu Lab AMS systems, it provides additional flexibility for multi-color and multi-material printing.

MACHINE SPECIFICATIONS:

• Brand: Bambu Lab

• Model: X2D

• Printer Type: FDM 3D Printer

• Printing System: Dual-Nozzle Extrusion

• Main Nozzle Build Volume: 256 × 256 × 260 mm

• Auxiliary Nozzle Build Volume: 235.5 × 256 × 256 mm

• Dual-Nozzle Printing Area: 235.5 × 256 × 256 mm

• Overall Printing Volume: 256 × 256 × 260 mm

• Maximum Toolhead Speed: 1,000 mm/s

• Maximum Acceleration: 20,000 mm/s²

• Maximum Hotend Flow Rate: 40 mm³/s

• Automatic Leveling: Supported

• Multi-Color Printing: Supported

• Multi-Material Printing: Supported

DUAL-NOZZLE EXTRUSION SYSTEM

• Extruder Quantity: 2

• Extruder Configuration: Main and Auxiliary Extruders

• Hotends: Dual Hotend System

• Extruder Motor: Closed-Loop Servo Motor

• Extruder Gears: Hardened Steel

• Nozzle Material: Hardened Steel

• Standard Nozzle Diameter: 0.4 mm

• Supported Nozzle Diameters: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm

• Maximum Nozzle Temperature: 300°C

• Filament Diameter: 1.75 mm

• Built-In Filament Cutter: Yes

PRINTING AREA

• Main Nozzle: 256 × 256 × 260 mm

• Auxiliary Nozzle: 235.5 × 256 × 256 mm

• Dual-Nozzle Printing: 235.5 × 256 × 256 mm

• Overall Available Printing Volume: 256 × 256 × 260 mm

The available printing area varies depending on the nozzle configuration and printing mode.

HEATED BED AND BUILD PLATE

• Maximum Heated Bed Temperature: 120°C

• Build Plate Type: Flexible Steel Build Plate

• Textured PEI Plate: Supported

• Smooth PEI Plate: Supported

• Cool Plate SuperTack: Supported

• Engineering Plate: Supported

ACTIVE CHAMBER HEATING

• Chamber Heating: Active

• Maximum Chamber Temperature: 65°C

• Temperature Control: Supported

• Engineering-Grade Filament Printing: Supported with Compatible Materials

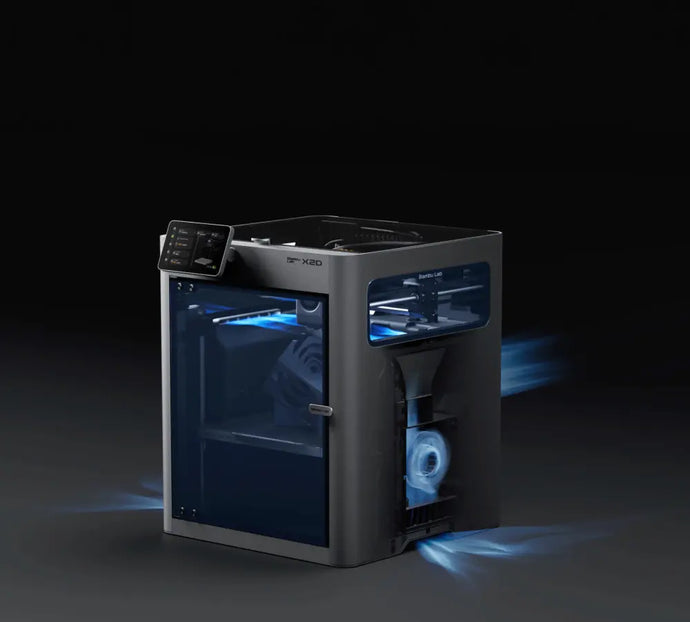

AIR FILTRATION

• Filtration System: Three-Stage Air Filtration

• Pre-Filter: G3

• HEPA Filter: H12

• Carbon Filter: Coconut Shell Activated Carbon

AUTOMATIC MATERIAL SYSTEM COMPATIBILITY

• Bambu Lab AMS: Compatible

• Bambu Lab AMS 2 Pro: Compatible

• Bambu Lab AMS HT: Compatible

• Multi-Color Printing: Supported

• Multi-Material Printing: Supported

• Additional AMS Connection: 4-in-1 PTFE Adapter (FAZ013-N) required for configurations with more than two AMS units, as specified

SENSORS AND SMART FEATURES

• Sensor System: 31 Sensors

• Full Filament Path AI Detection: Supported

• Filament Detection: Yes

• Filament Runout Detection: Yes

• Filament Tangle Detection: Supported

• Automatic Bed Leveling: Yes

• Input Shaping: Supported

• Power Loss Recovery: Supported

• Feeding Path Monitoring: Supported

• Thermal Environment Monitoring: Supported

• Safety Status Monitoring: Supported

• Vision Encoder: Optional

KEY FEATURES

• Dual-Nozzle Printing System: Uses two hotends for efficient multi-color and multi-material printing.

• Faster Material Switching: Reduces the need for repeated filament changes through a single nozzle.

• Cleaner Support Removal: Allows compatible support materials to be printed separately from the main model material.

• High-Speed Printing: Supports maximum toolhead speeds of up to 1,000 mm/s and acceleration of 20,000 mm/s².

• Closed-Loop Servo Motor Extruder: Provides controlled filament feeding and extrusion monitoring.

• Hardened Steel Components: Features hardened steel extruder gears and nozzles for durability.

• High-Temperature Hotend: Reaches temperatures of up to 300°C for a variety of compatible filaments.

• Active Chamber Heating: Maintains chamber temperatures of up to 65°C to help reduce warping when printing selected engineering-grade materials.

• 120°C Heated Bed: Supports printing with standard and selected high-temperature filaments.

• Three-Stage Air Filtration: Combines a G3 pre-filter, H12 HEPA filter, and coconut shell activated carbon.

• Full Filament Path AI Detection: Monitors filament movement to help identify feeding issues.

• 31 Integrated Sensors: Monitor filament feeding, thermal conditions, and machine safety status.

• Automatic Bed Leveling: Simplifies printer setup and first-layer calibration.

• Input Shaping: Supports vibration compensation for improved printing accuracy.

• Power Loss Recovery: Helps resume printing after unexpected power interruptions.

• AMS Compatibility: Supports compatible Bambu Lab Automatic Material Systems for expanded multi-color and multi-material printing.

• Optional Vision Encoder: Provides an additional calibration accessory option.

MACHINE SIZE AND WEIGHT:

PRINTER DIMENSIONS

• Machine Dimensions (L × W × H): 39.2 × 40.6 × 47.8 cm

• Machine Weight: 16.25 kg

• Main Nozzle Build Volume (L × W × H): 25.6 × 25.6 × 26 cm

• Auxiliary Nozzle Build Volume (L × W × H): 23.55 × 25.6 × 25.6 cm

• Dual-Nozzle Build Volume (L × W × H): 23.55 × 25.6 × 25.6 cm

SOFTWARE REQUIREMENTS:

PRINTING AND CALIBRATION FEATURES

• Dual-Nozzle Printing Configuration

• Multi-Color and Multi-Material Printing

• Automatic Bed Leveling

• Input Shaping

• Filament Monitoring

• Power Loss Recovery

• AMS Material Management

• Optional Vision Encoder Calibration

SOFTWARE COMPATIBILITY

Compatible slicing software, supported operating systems, and software version requirements should be confirmed against the official Bambu Lab X2D documentation.

Compatible software is required to prepare 3D models and configure dual-nozzle printing operations.

AVAILABLE FOR SAME-DAY PICKUP

Available for same-day pickup at the following locations:

• Santa Maria, Bulacan

• San Juan, Manila

***Subject to stock availability and order confirmation.***

WARRANTY DETAILS

1 YEAR WARRANTY

• Parts and Service

3 MONTHS WARRANTY

• Consumable Components

WARRANTY TERMS

• Warranty coverage is subject to the manufacturer's and seller's applicable terms and conditions.

• Claims may require inspection and assessment to determine eligibility.

• Damage resulting from misuse, unauthorized modifications, or normal wear may be subject to warranty exclusions.

***Terms and conditions apply.***

COMPATIBLE MATERIALS, BLANKS & CONSUMABLES

SUPPORTED FILAMENTS

The Bambu Lab X2D uses 1.75 mm filament and supports standard, flexible, support, and selected engineering-grade materials depending on the printing configuration and material requirements.

STANDARD AND GENERAL-PURPOSE FILAMENTS

• PLA: Suitable for decorative models, figurines, prototypes, and general-purpose printing.

• PETG: Ideal for durable functional parts and customized accessories.

• PET: Suitable for selected functional printing applications.

• ABS: Suitable for functional components requiring improved heat resistance.

• ASA: Suitable for selected outdoor and functional applications.

• TPU for AMS: Compatible flexible filament formulations designed for supported AMS configurations.

ENGINEERING-GRADE FILAMENTS

• PA (Nylon): Suitable for durable functional and mechanical components.

• PC (Polycarbonate): Suitable for selected high-strength and heat-resistant applications.

• PAHT: High-temperature nylon material for compatible engineering applications.

• PLA-CF: Carbon-fiber-reinforced PLA.

• PLA-GF: Glass-fiber-reinforced PLA.

• PAG: Material designation listed in the supplied compatibility information; confirm the exact formulation before use.

SUPPORT MATERIALS

• Support for PLA

• Support for PLA/PETG

• Support for ABS

• Support for PA/PET

• PVA

Support material compatibility depends on the model filament, nozzle configuration, and printing settings.

AUTOMATIC MATERIAL SYSTEM ACCESSORIES

• Bambu Lab AMS

• Bambu Lab AMS 2 Pro

• Bambu Lab AMS HT

• 4-in-1 PTFE Adapter (FAZ013-N) for applicable expanded AMS configurations

OTHER COMPATIBLE ACCESSORIES AND CONSUMABLES

• Compatible 1.75 mm Filaments

• Hardened Steel Replacement Nozzles

• Compatible PEI Build Plates

• Cool Plate SuperTack

• Engineering Plate

• Compatible Filament Management Accessories

• Replacement Air Filters

• Printer Maintenance Accessories

• Optional Vision Encoder

SHOP COMPATIBLE MATERIALS AND ACCESSORIES

Click on the items below to view products and shop.

• Filaments

• 3D Printer Accessories

***Note: Material and accessory compatibility may vary depending on the machine configuration. Some filaments require specific drying conditions, nozzle components, printing temperatures, or additional accessories.***
