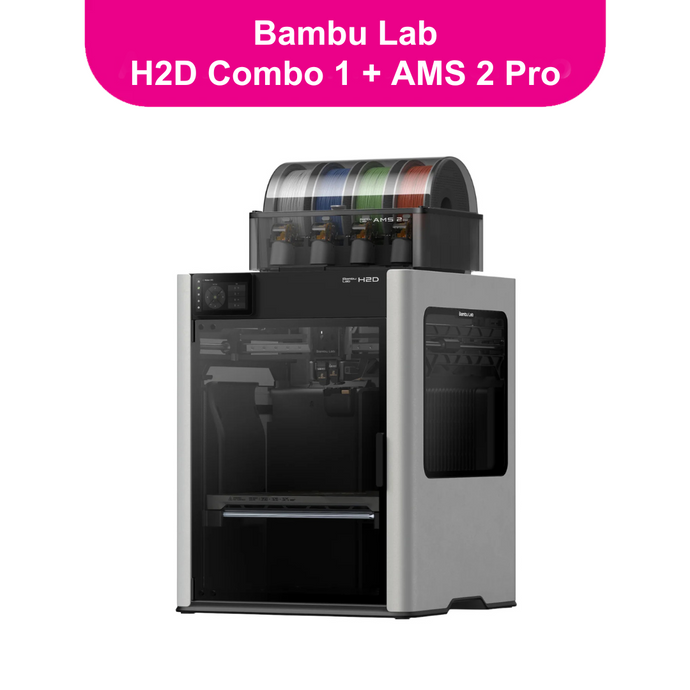

Bambu Lab | H2D Combo 1 (Non-Laser + AMS 2 Pro) 220V

Bambu Lab H2D Combo 1 (Non-Laser + AMS 2 Pro) 220V

Important Notice Before Purchase

The Laser Module is only compatible with the H2 Laser version. If you want to upgrade your existing H2 Series with laser functionality, please kindly ensure that you have correctly selected the Laser Upgrade Kit option before purchase.

The Laser Upgrade involves a more advanced installation process. Before making a purchase, we strongly recommend reviewing the Bambu Lab Wiki (for H2D/H2C Laser Upgrade Kit/for H2S Laser Upgrade Kit), and watching the Laser Upgrade Kit installation video to ensure you're confident with the procedure.

The Bambu Lab H2D is an advanced all-in-one manufacturing solution that integrates multiple fabrication technologies into a single device, including 3D printing, laser cutting and engraving, digital cutting, and pen drawing.

3D Printing: Equipped with dual nozzles capable of reaching temperatures up to 350°C, the H2D supports multi-material and multi-color printing. Its spacious build volume of 350 x 320 x 325 mm and a heated chamber up to 65°C allow for the use of high-performance materials, including carbon and glass fiber-reinforced filaments.

Laser Cutting and Engraving: The H2D offers optional laser modules of 10W and 40W. The 10W laser can cut materials up to 5 mm thick, while the 40W laser can handle materials up to 15 mm thick. These modules enable precise cutting and engraving on various materials such as wood, leather, and acrylic.

Digital Cutting and Pen Drawing: With its digital cutting feature, the H2D functions similarly to a vinyl cutter, allowing for precise cuts in materials like paper, vinyl, and leather. Additionally, by attaching a pen, it can perform detailed drawing and writing tasks.

Advanced Motion and Sensing Systems: The H2D incorporates a vision encoder achieving 50µm motion accuracy, dual-nozzle calibration technology, and an AI-backed nozzle camera that monitors extrusion quality in real-time.

Automatic Material System (AMS): The printer introduces two AMS options—AMS 2 Pro and AMS HT. Both systems feature faster filament feeding and integrated drying functions, with the AMS HT designed for high-temperature materials, supporting drying temperatures up to 85°C.

Specifications:

Build Volume:

Single Nozzle Printing:  325x320x325mm

Dual Nozzle Printing: 300x320x325mm

Total Volume for Two Nozzles: 350x320x325mm

Chassis & Shell: Aluminum, Steel, Plastic and Glass

Laser Safety Windows: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit

Air Assist Pump: Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit

Physical Dimensions: 492x514x626mm

Package Size: 620x620x755mm

Net Weight: 31kg

Gross Weight: H2D AMS Combo – 42.3kg

Hotend: All Metal

Extruder Gear: Hardened Steel

Nozzle:  Hardened Steel

Max Nozzle Temperature: 350°C

Included Nozzle Diameter:  0.4mm

Supported Nozzle Diameter: 0.2mm, 0.4mm, 0.6mm, 0.8mm

Filament Diameter: 1.75mm

Extruder Motor: Bambu Lab high-precision permanent magnet synchronous motor

What’s in the Box:

H2D COMBO (NON LASER + AMS 2 PRO) 220V EU Plug

Bambu Lab H2D

AMS 2 Pro

Build Plate

Spool Holder

Accessory Box

Safety Key

Warranty

1-Year Parts and Service Warranty

·         Printers/AMS/AMS lite

3-months Consumable Warranty

·         Bed

·         Hotend

·         Belt

·         Extruder Unit (excluding the Extruder Gear Assembly and the Extruder Filament Sensor）

·         AMS/AMS lite Feeder Unit (excluding the AMS Feeding Funnel Unit/AMS lite Filament Funnel Unit

·         AMS lite Rotary Spool Holder (excluding the AMS lite Spool Claw)

·         Stock Micro SD Card (32 GB)

Consumable Parts with No Warranty

·         Complete Bambu Hotend and all its individual parts (Cooling Fan for Hotend, Ceramic Heater, Thermistor and Silicone Sock for Hotend)

·         Hardened Steel Extruder Gear Assembly

·         Build plates, Glue Stick/Liquid Glue for Build Plate

·         PTFE Tube and PTFE Tube Connector

·         AMS Active Support Shaft Assembly, AMS Driven Support Shaft Assembly, and AMS Feeder Funnel Unit, AMS lite Spool Claw

·         Filament Cutter Lever, Bambu Scraper, filament wipers, Bambu Activated Carbon Air Filter, Desiccant for AMS, filaments, etc.

These items are not covered under a specific warranty period, but Bambu Lab may replace them for manufacturing defects if the printer is still under warranty. Replacement decisions are at Bambu Lab's discretion and are final.

Only purchase receipts issued by Bambu Lab or distributors authorized by Bambu Lab are valid for warranty.
